| Product：J18 Mix Fix Mounting including Low Frequency Series |
With low frequency contactor components;
Float or fix mounting?? Suitable for installing with high frequency, high voltage
and high power contactor components; low frequency contact terminal length (measured by pin
length exceed base): 3.2mm??
?? Connector: 1. Pin socket, 2. Receptacle socket. |
|
|
|
|

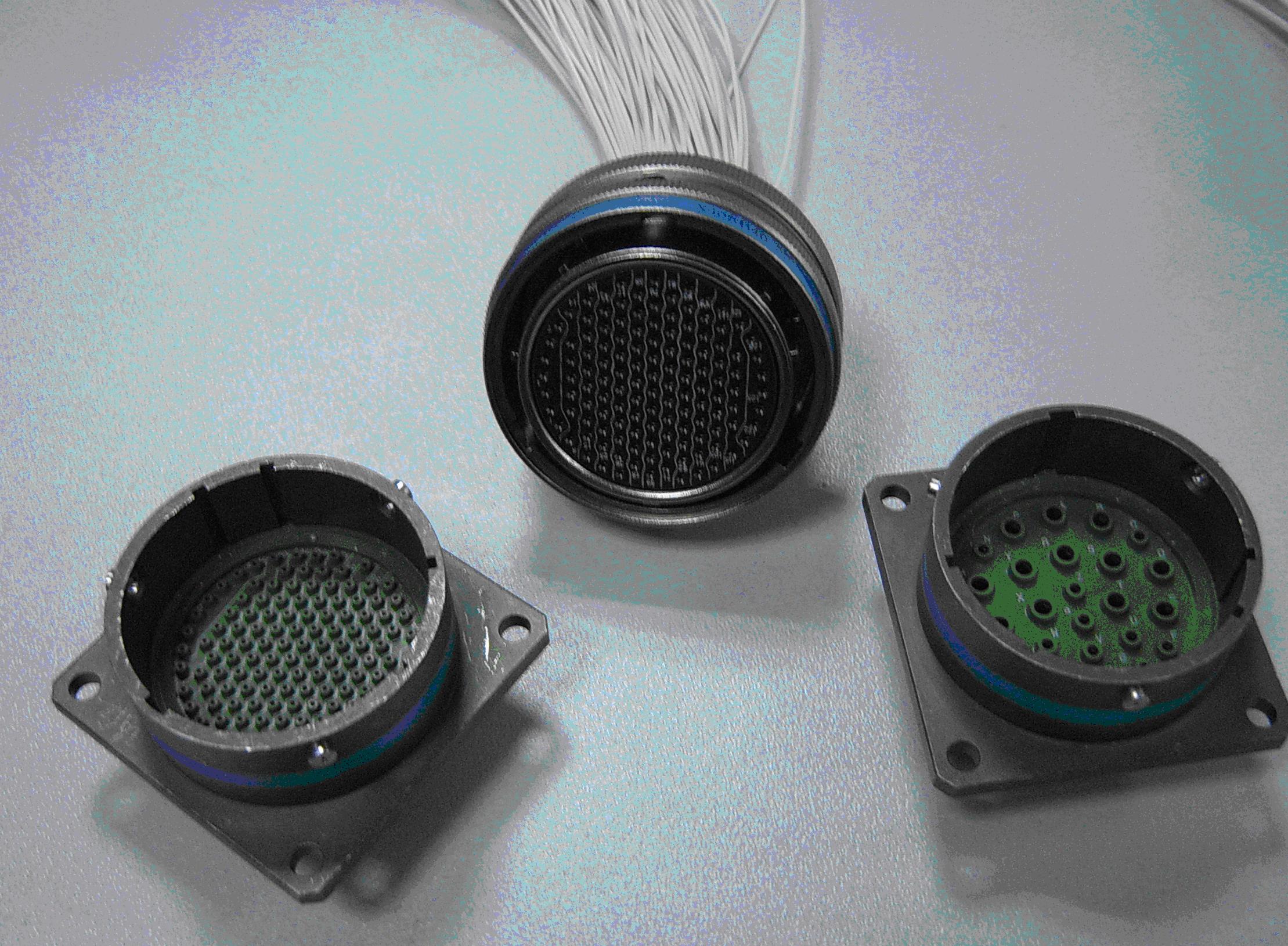

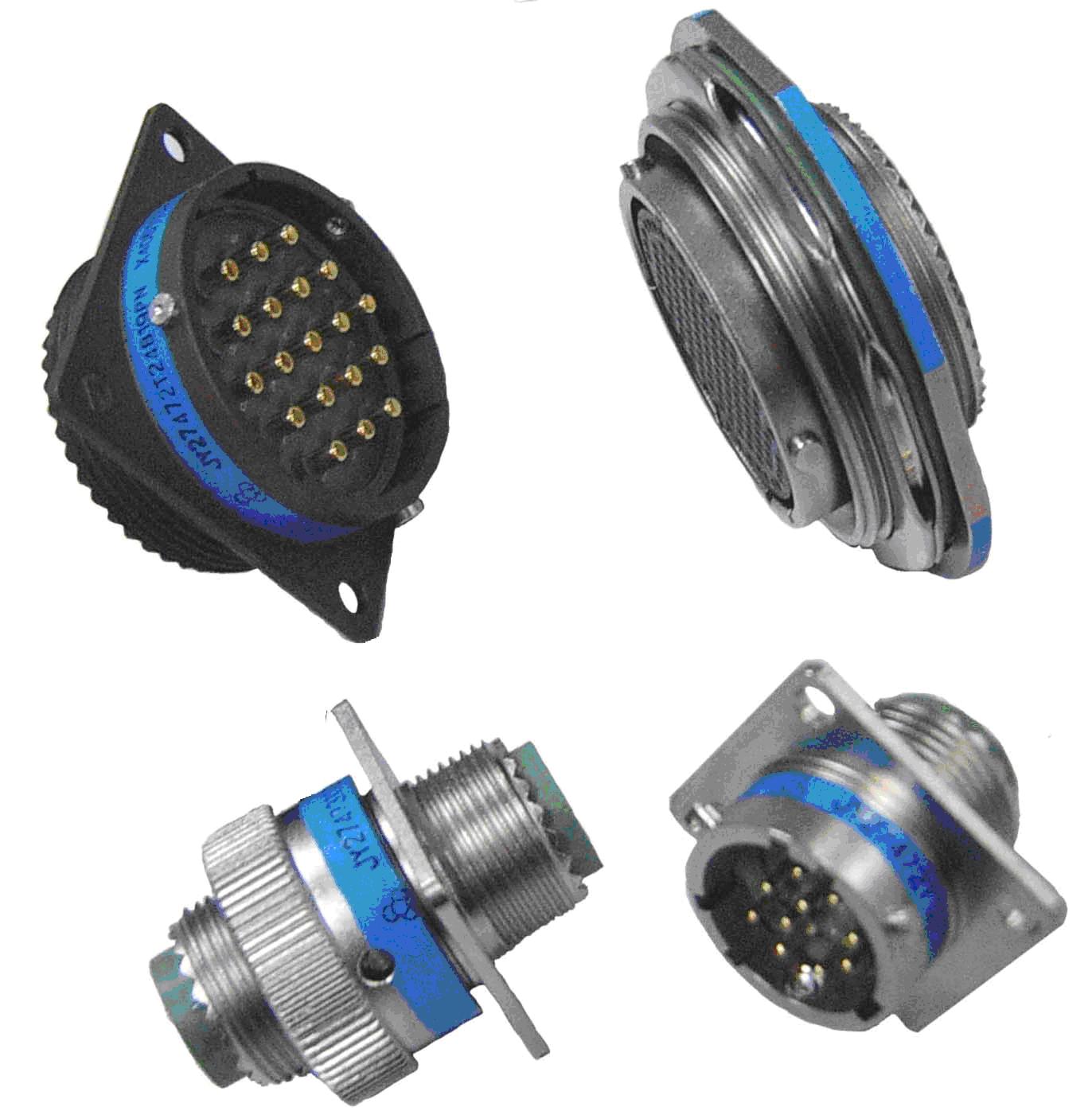

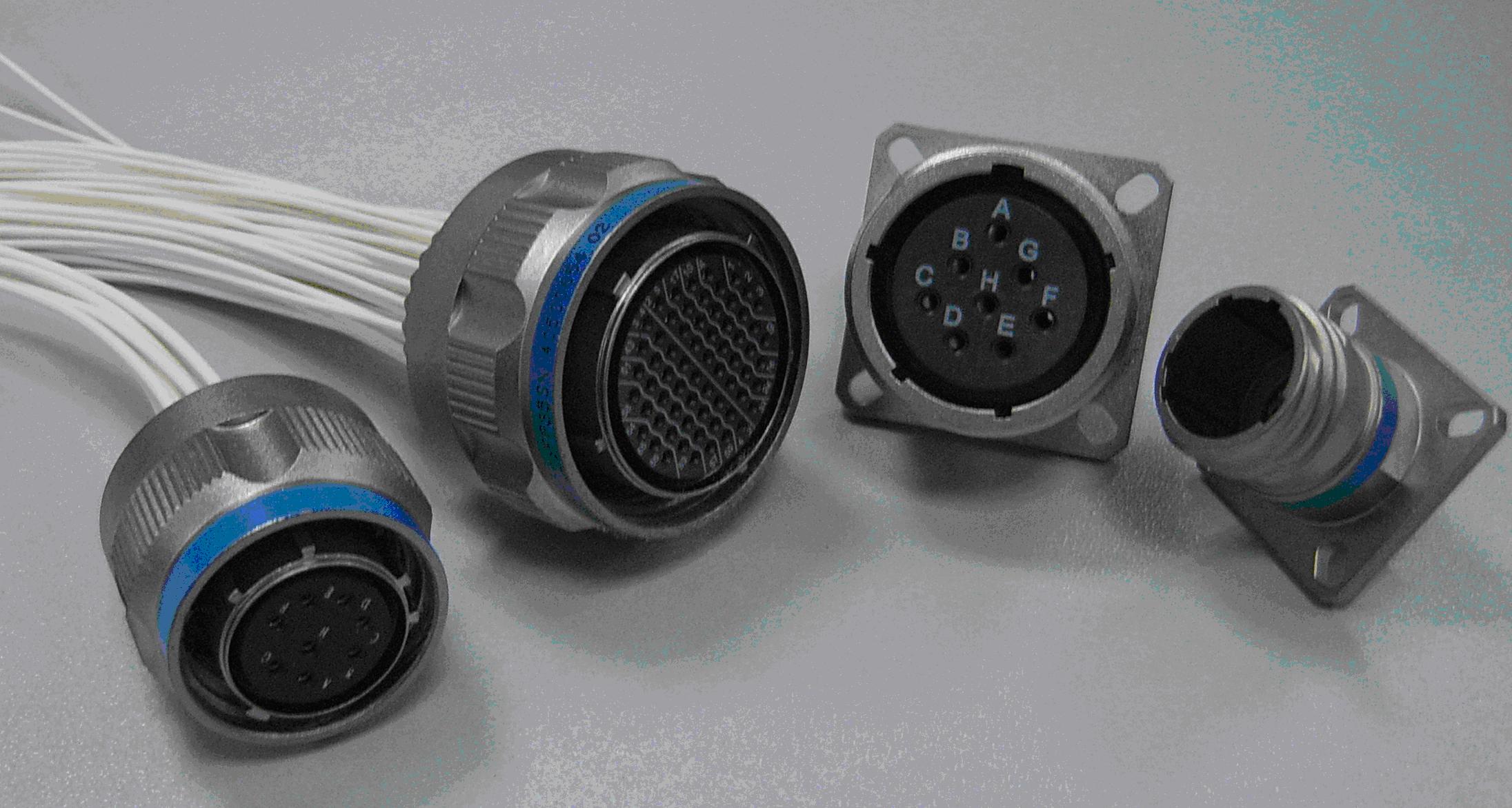

| Product：J599 Space Connector Series High density miniature circular electrical connector |
Ambient temperature operation:
Nickel coating:-60~+200℃
Vibration: Sine 294 m/s2 10??2000Hz
Random 96(m/s2 )2/ Hz 408m/s2,100??1000Hz;
Random 480( m/s2 )2/ Hz, 100-300 Hz
Shock: 2940m/s2 3ms
Durability: 500 cycles
Contact resistance:
#22D: 14.6m?? #20: 7.3m
#16: 3.8m?? #12: 1.8m
Insulation resistance: ??5000 M?? (500V DC)
Voltage dropped:
Inner and middle contact: ??55mV at 1A
External contact: ??75mV at 12A |
|
|
|
|
|
|
|
|
|
|
| Product：J18 Mix Installing and Removal Tool |
J18 mix assemble and disassemble tools are used for
special contact components. Tool set including installing tool
and removal tool for selected components.
Tool sets are not included in the J18 series parts. Special
order is requested. |
|
|
| Product：J18 Male Thread Lock Part Clipper |
Male thread locking part applies to J18 float mounting
low frequency solder series and J18 crimp series??
Style:
Common type ¨C Direct installed into connector.
-B ¨C suits one-body metal cable clipper.
Inside female part thread ¨C
1. M2.5
2. #4-40UNC. |
|
|
| Product：J18 Female Thread Lock Part |
Female Thread Lock Parts are customer designed upon
user per various specification and purposes. Female thread locking part is used to fit J18 fix mounting
series for connecting with mounting panel. |
|
